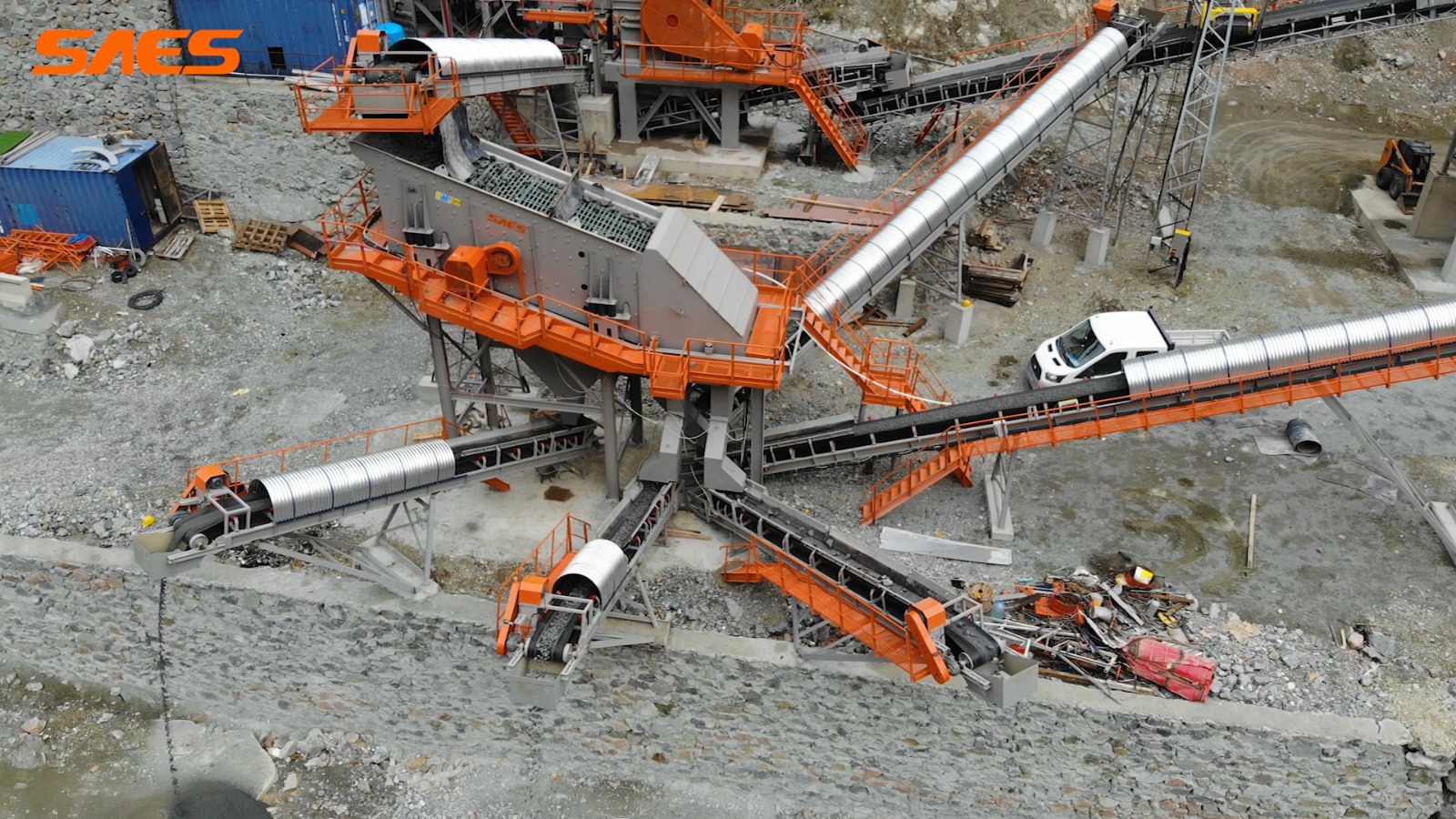

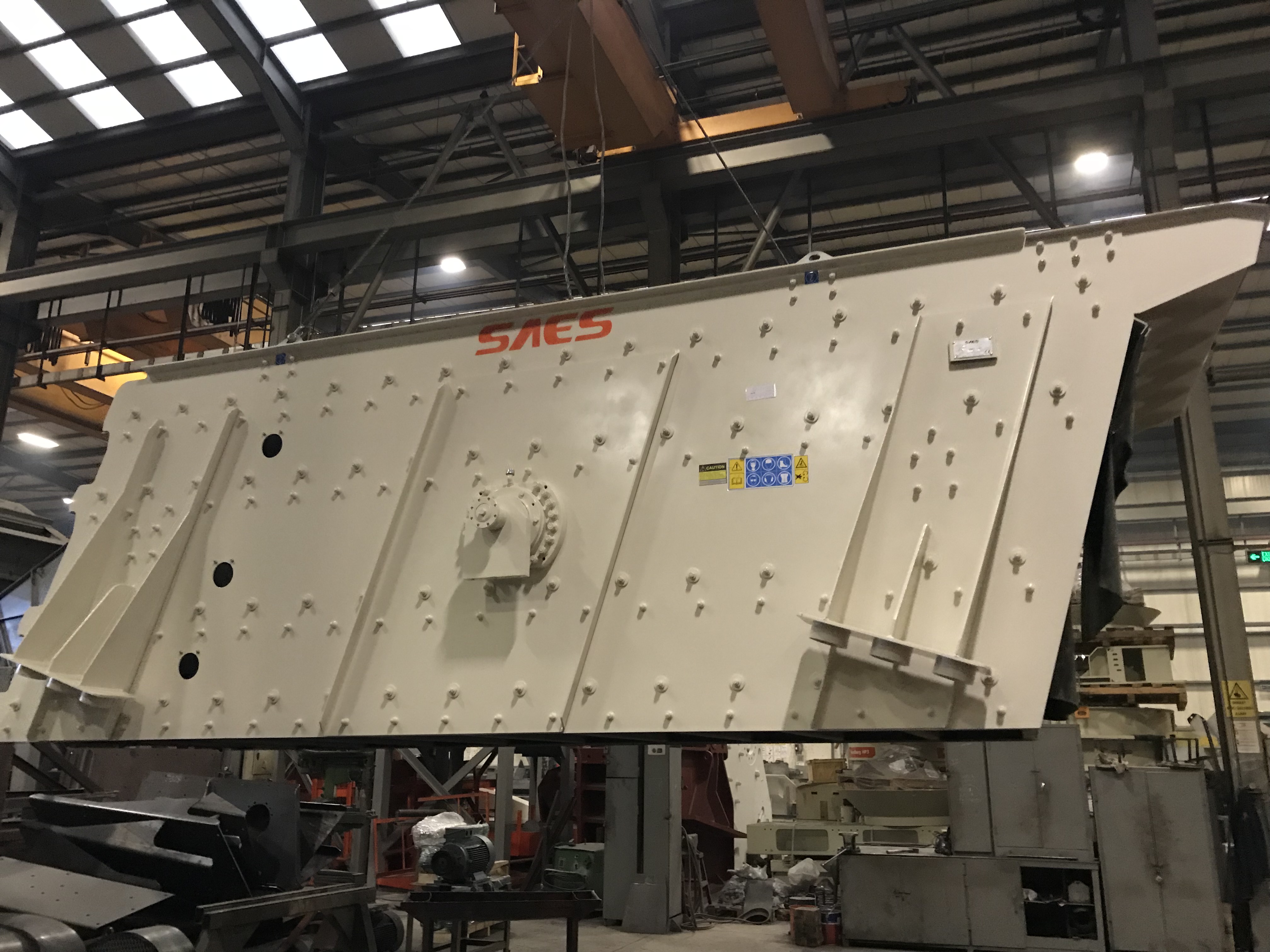

SAES E2060-4 Inclined Screen

Category: Screen


4 deck Inclined Screen


  • Screen Dimensions : 2000 x 6000 mm. with 4 decks
  • Drive : 30 kW
  • Vibration amplitude is adjustable with counterweights.
  • Screen body is made of 10 mm thick steel plate.
  • Vibrating screen is mounted on the chassis with heavy duty helical coil springs.
  • Working angle is 18°
  • Power transmission via by eccentric shaft, pulley and V belts
  • Screen is fully assembled with Huckbolts
  • Machine Weight : 9,000 kg
