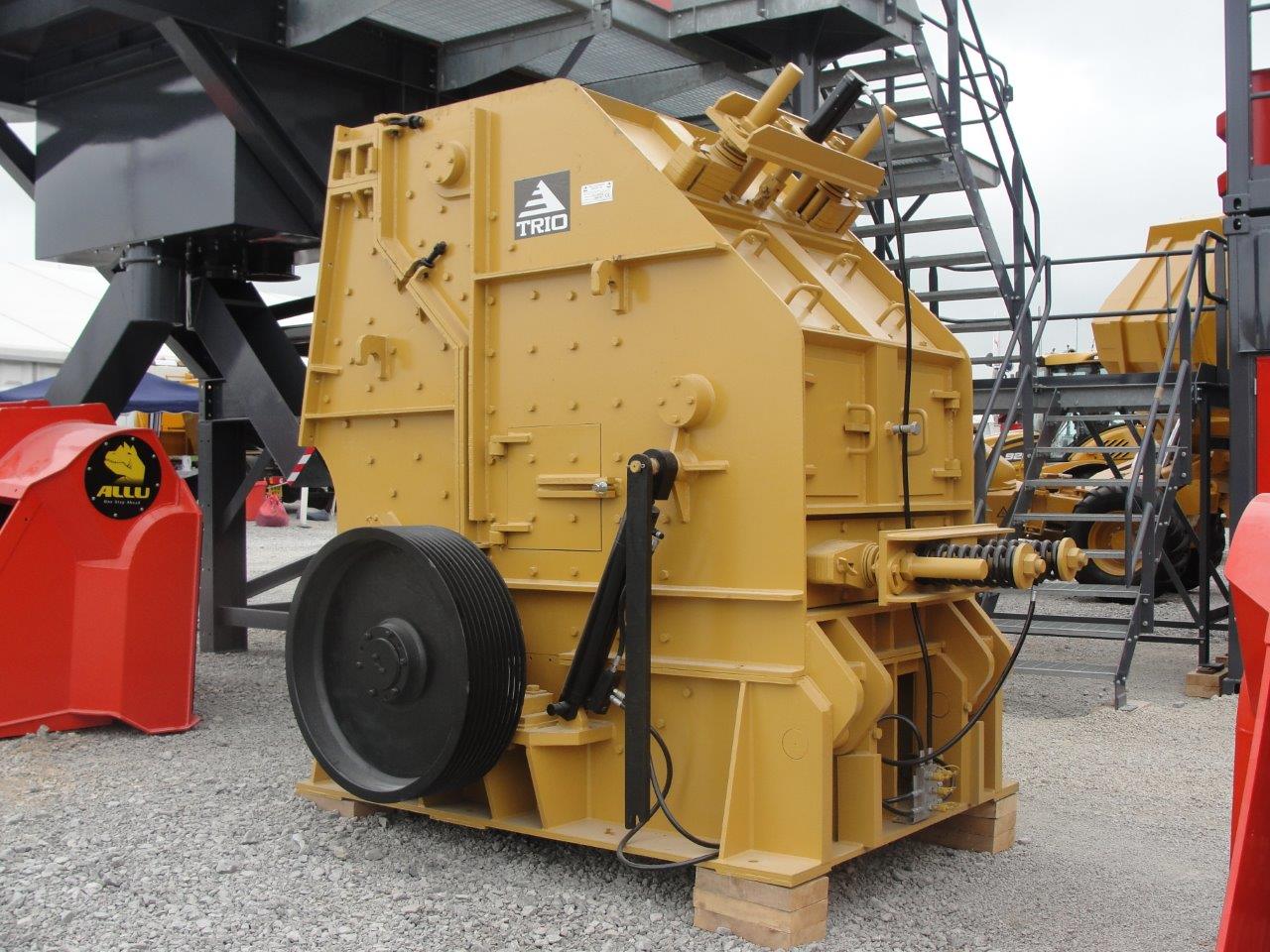

TRIO APP5160 Primary Impact Crusher
Category: Crusher
TRIO APP5160 Primary Impact Crusher
- Rotor Size (Diameter x Width): 51”x 60” (1300 x1500 mm)
- Feed Opening: (H x W) 44” x 62” (1100 x 1600 mm)
- Bearings: 180mm, spherical, self-aligning roller bearings
- Lubrication: Grease lubrication with labyrinth type seals
- Machine Weight: 54,805 lbs (24,912 kg)
- CSS Range: 2” to 10” (50 to 254 mm)
- Capacity: 350 - 600 TPH Varies by application
- Required Power: 400 Hp (315 kW) Electric Motor
- Operating Speed: 350 to 600 rpm (varies with application).

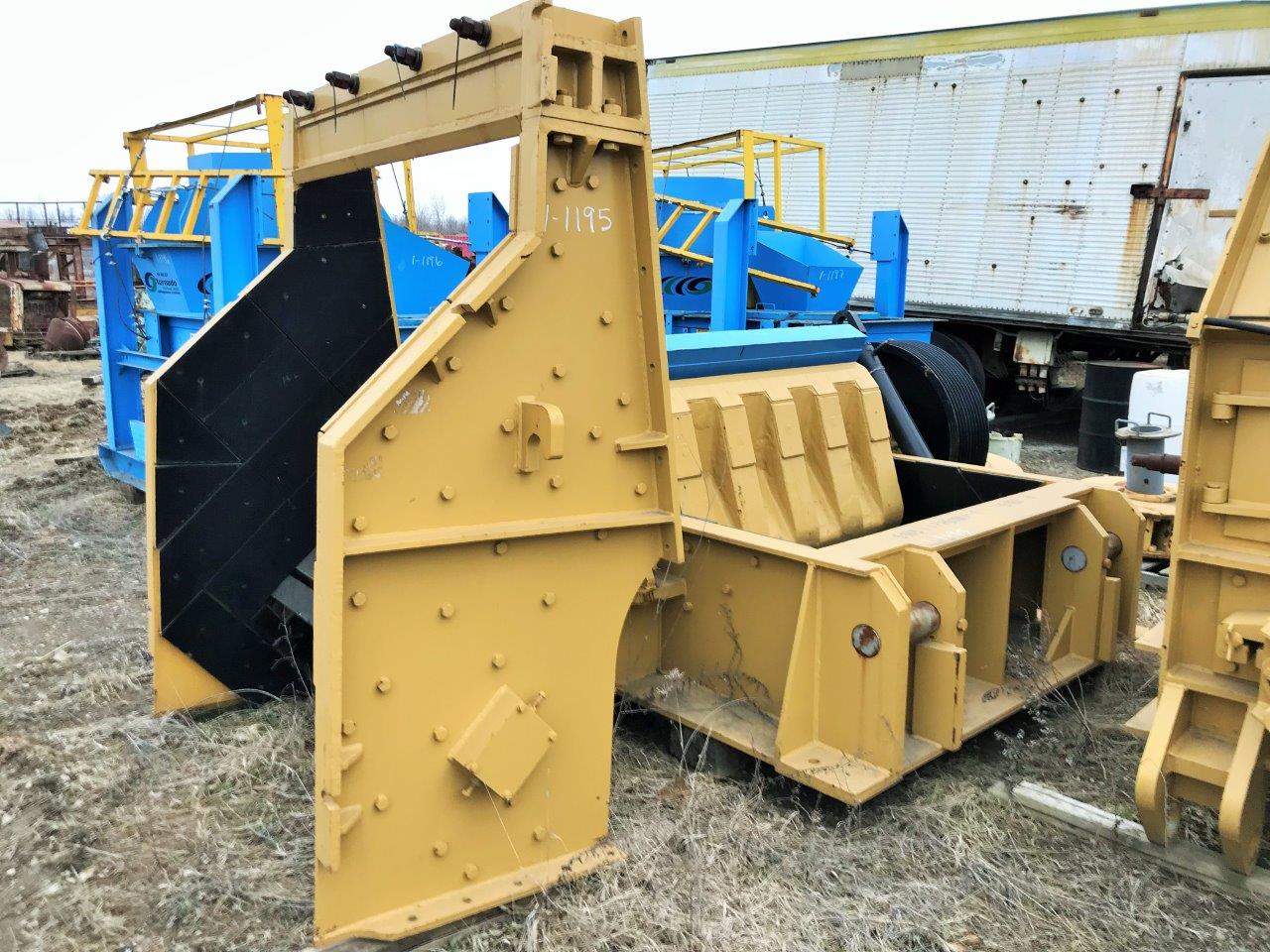

- Crusher Opening: Machine is fitted with hydraulic cylinders to easily open and close the crusher for maintenance.
- Frame: Low carbon steel, welded and stressed relieved. Crushing cham¬ber completely lined with AR plate.
- Curtains: Primary curtain is a heavy duty, one piece cast manganese liner. Secondary curtain is fabricated and fitted with replaceable manganese liners.

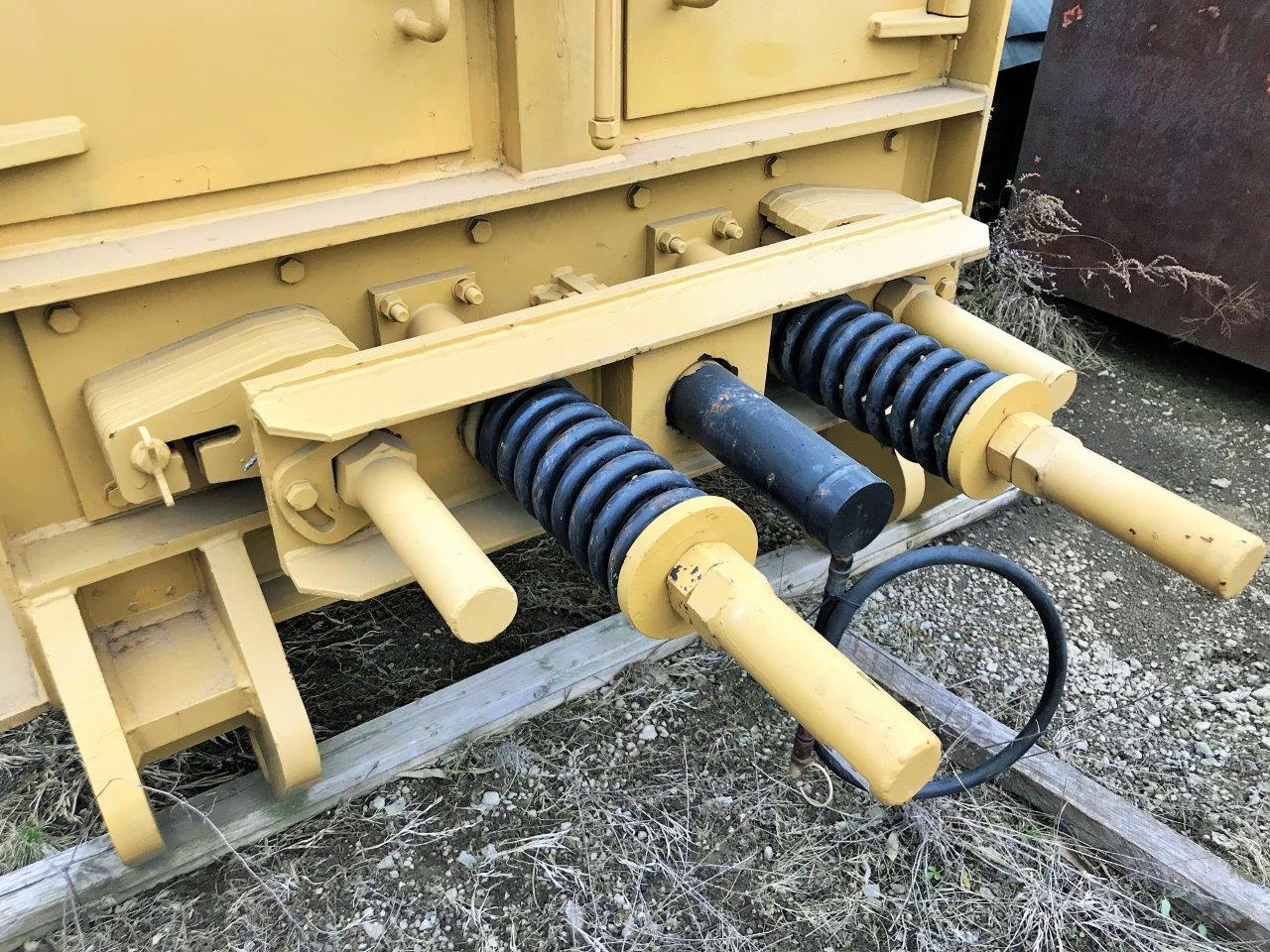

- Adjustment: Hydraulically adjusted primary and secondary curtains
- Crusher Maximum Allowable Feed Size: up to 36” (900mm cube)

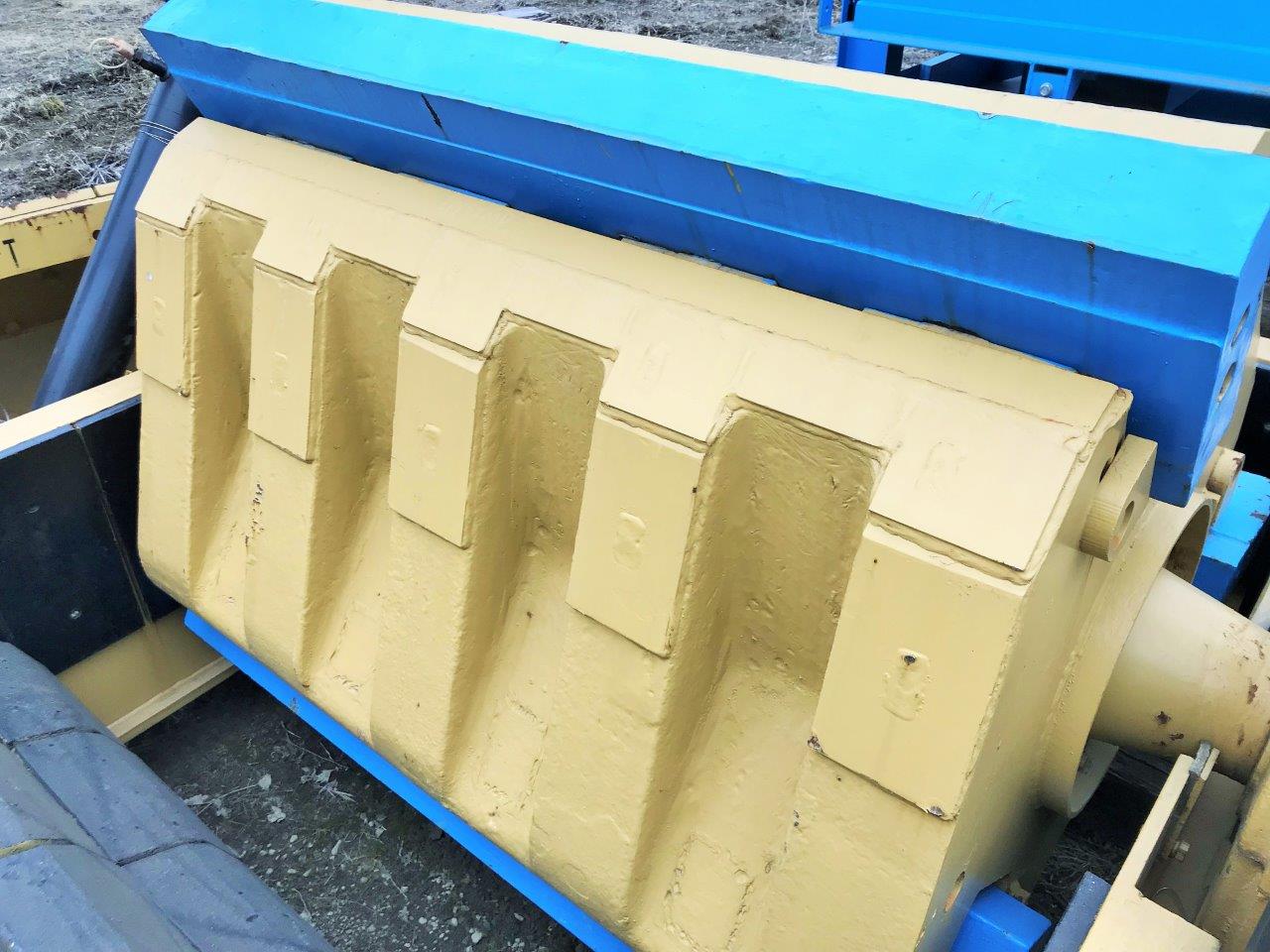

- Rotor Types and Configurations: Solid, one-piece cast rotor with 3 blow bar arrangement.
- Shaft: Solid Forged Steel through shaft with a keyless locking mecha¬nism for rotor attachment. Oversized and precision machined for assembly.
- Blow Bar Types: Manganese and high chrome blow bars available
