Crushing and Screening

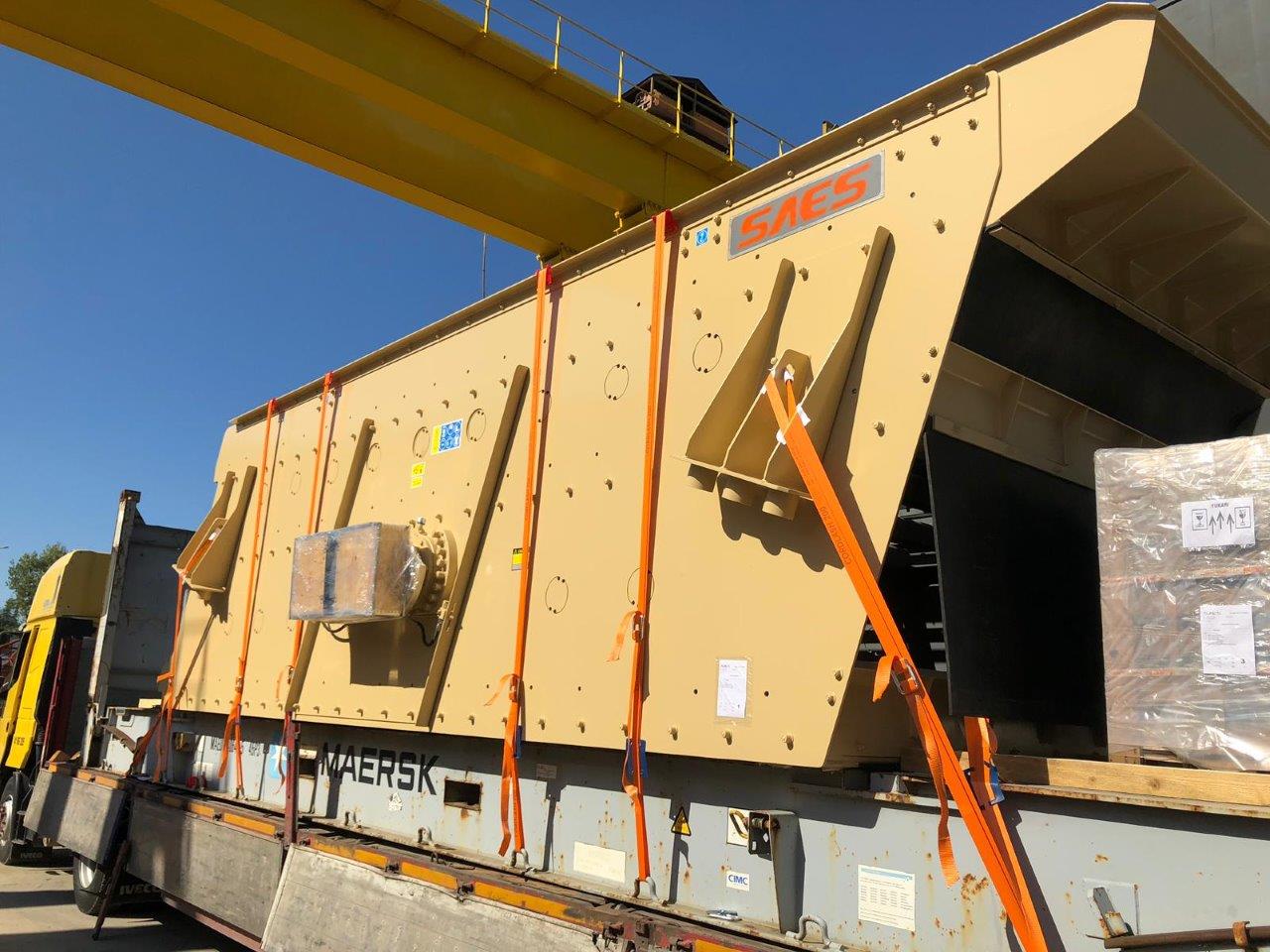

SAES E2472-3 Inclined Screen

Category: Screen

SAES E2472-3

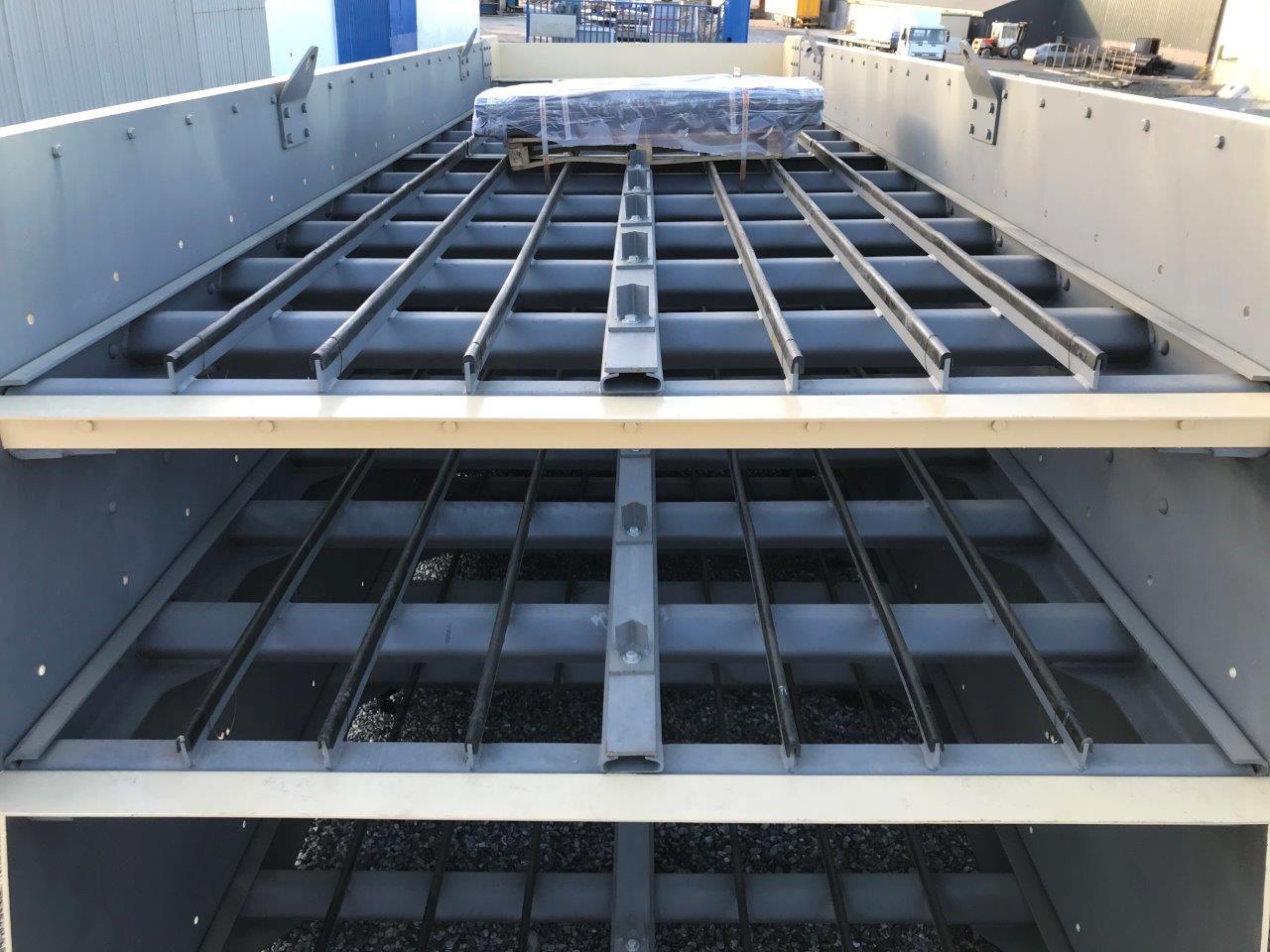

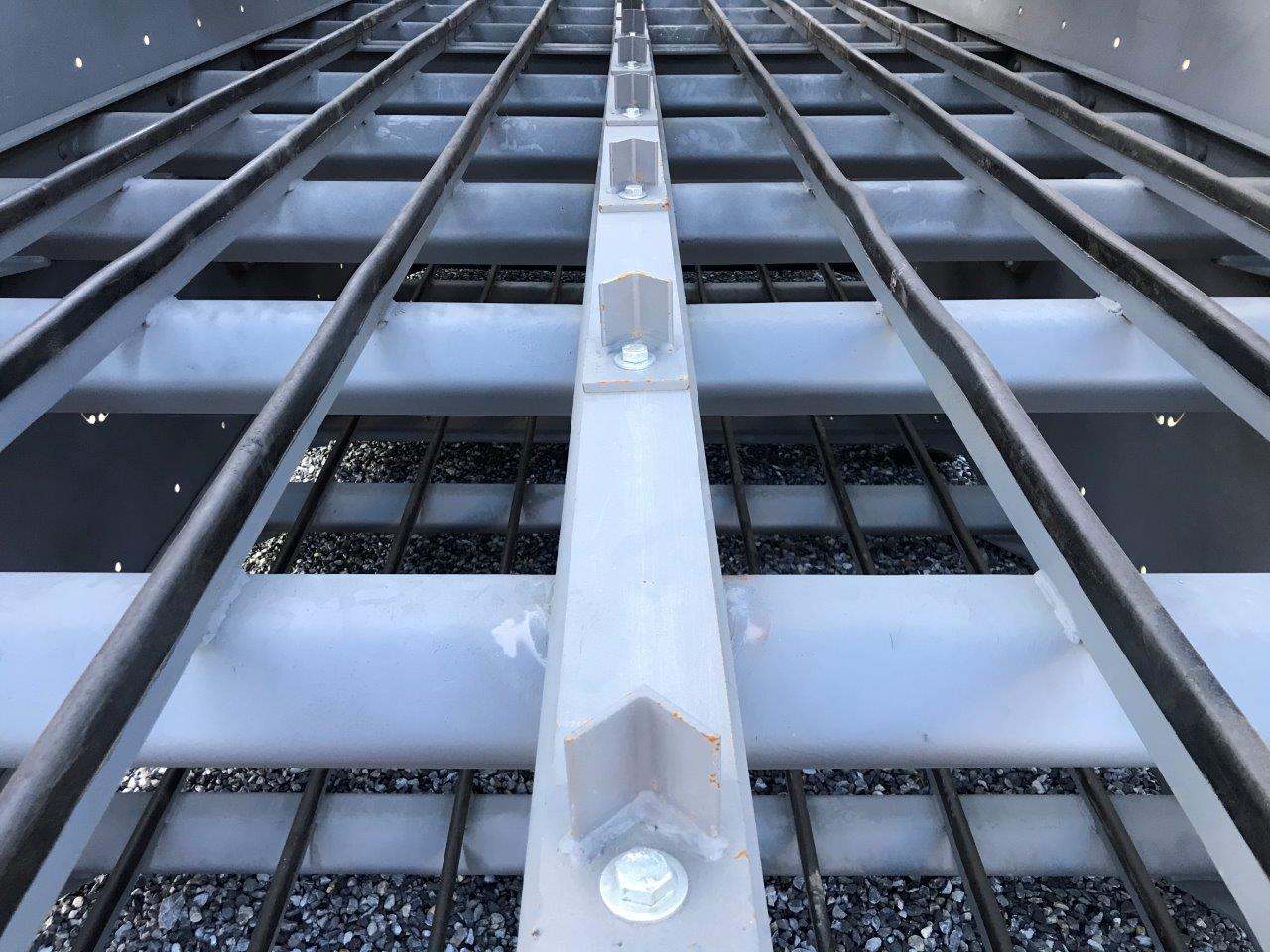

Screen dimensions : 2,400 x 7,200 mm with 3 decks
Drive : 2x22 kW motors
Vibration amplitude is adjustable with counterweights
Screen body is made of 10 mm thick steel plate.
Vibrating screen is mounted on the chassis with heavy duty helical coil springs
Working angle is 18°

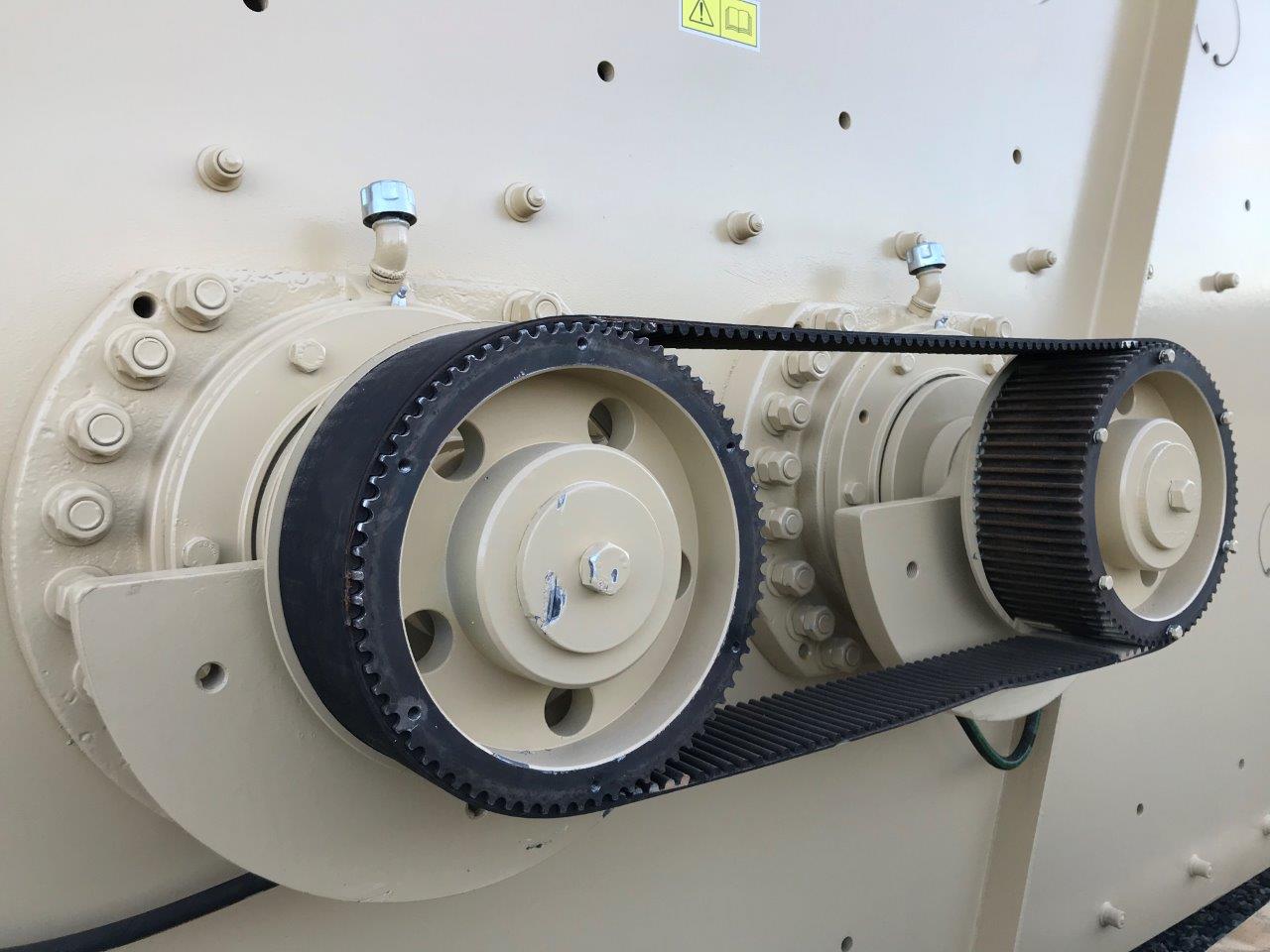

Power transmission via eccentric shaft, pulley and V belts
Screen is fully assembled with Huckbolts
Machine Weight : 12,750 kg
