New TRIO TSW 4432 Fine Material Washer


Category: Washer

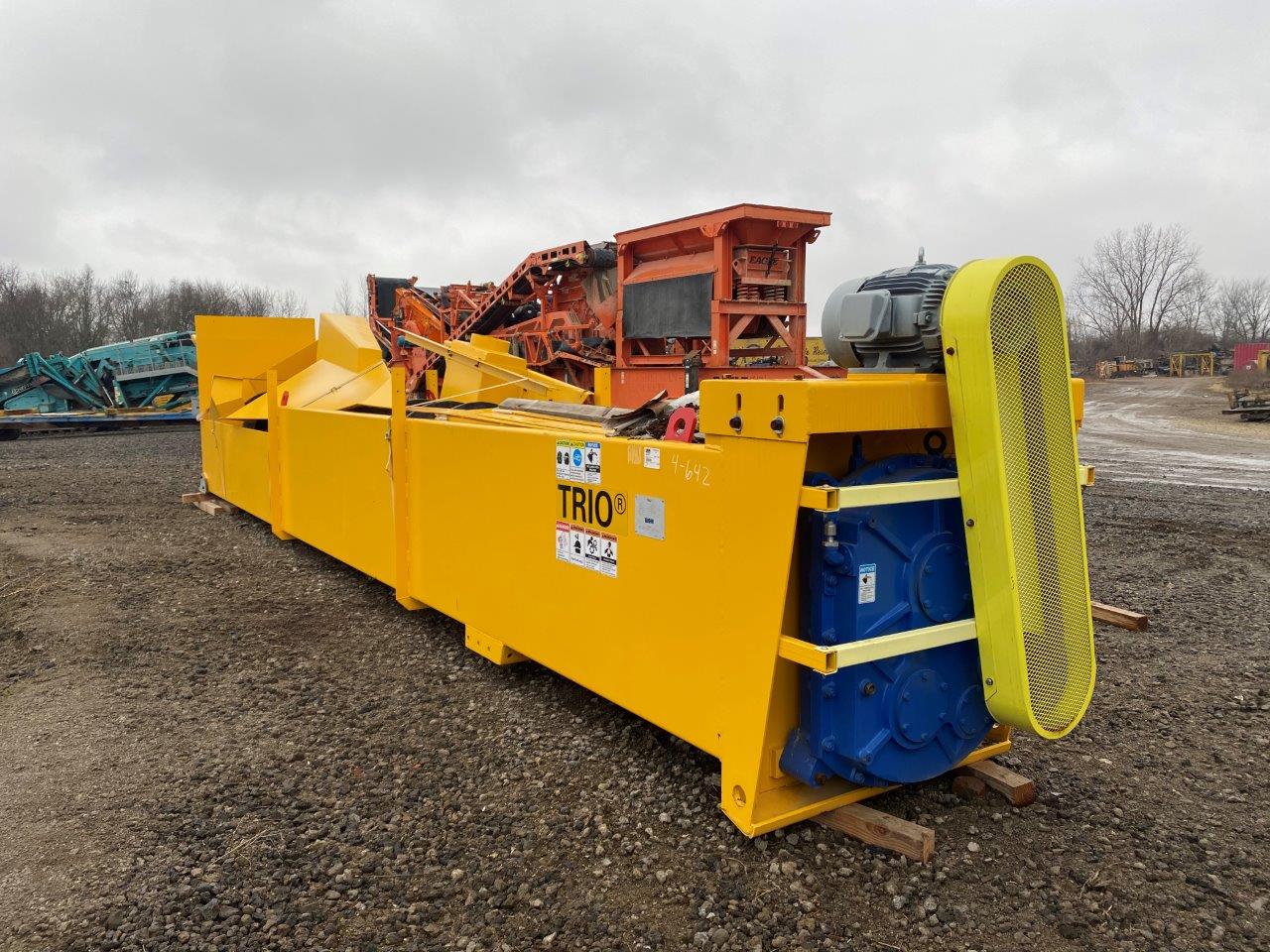

TRIO TSW 4432 Fine Material Washer


  • Machine Size: 44” x 32’ (1100mm x 9.6M )
  • Machine Weight : 23,000 lbs (10500 kg)
  • Operating Angle : 18° incline
  • Max Operating Speed: 17 RPM as standard
  • Feed Size: up to 3/8” (10mm) material
  • Capacity: up to 175 STPH (155 MTPH)
  • Power: 25 Hp (18.5 kW) Electric Motor
  • Drive: Oversized, extreme-duty, TRIO-built speed reducer with oil bath lubrication for maintenance free operation.
  • Lower Bearing: Outboard grease lubricated lower bearing assembly with replace¬able rubber “donut” seals and stainless steel wear sleeves.
  • Shaft: Heavy duty seamless steel shaft 14” (335mm) diameter.
  • Tub: Fabricated from 5/16” (8mm) plate. Rising current manifold inside.
  • Tub: Fabricated from 5/16” (8mm) plate. Rising current manifold inside.
  • Accessories: Drive motor, feed box, support legs, discharge chute, adjustable over-flow weir, rising current manifold and drain plugs.
