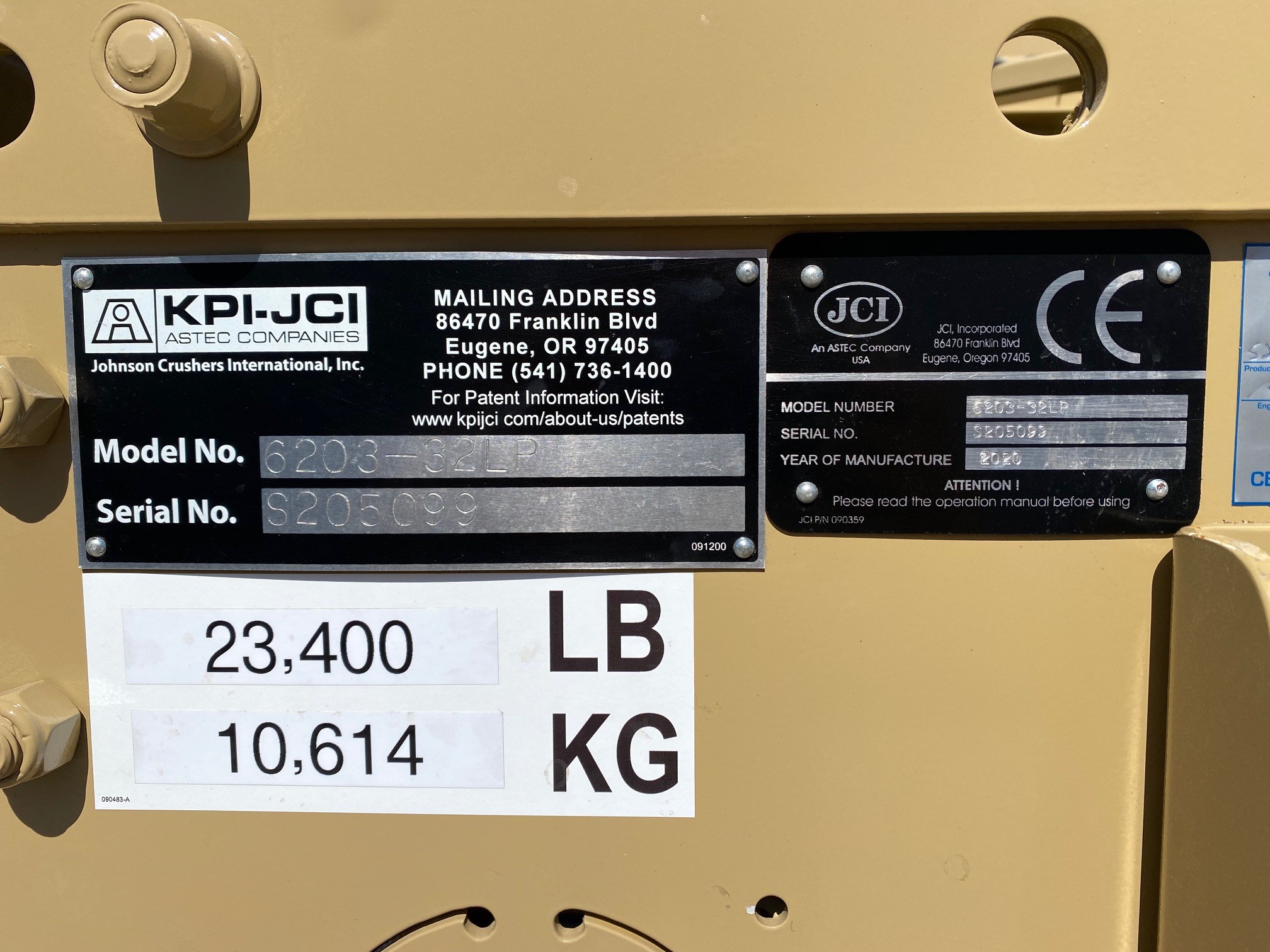

JCI 6203-32 +5 LP Horizontal Screen

Category: Screen

New JCI 6203-32 +5 LP Horizontal Screen

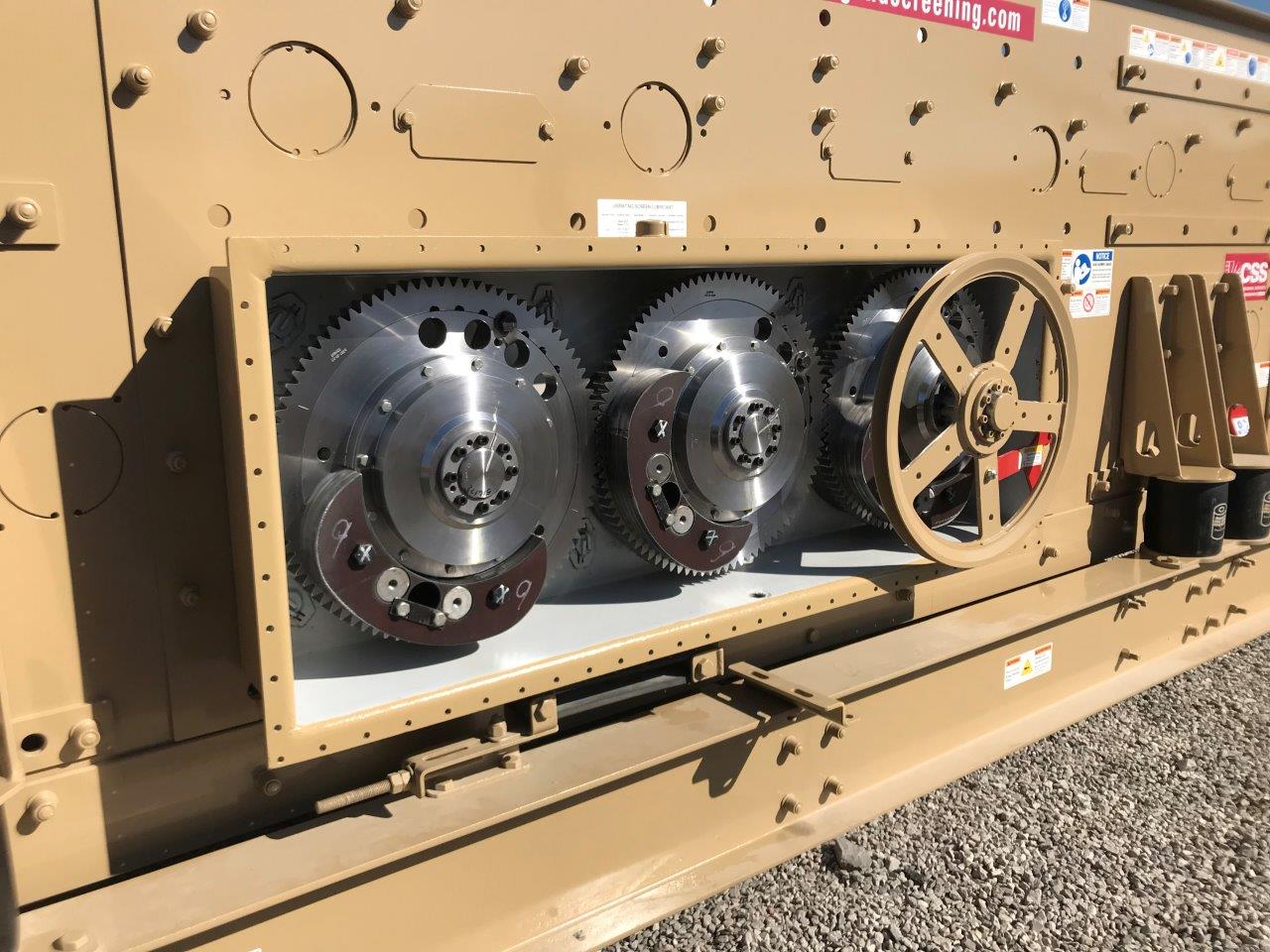

  • 2020 Build JCI 6203-38LP Horizontal triple shaft screen,
  • Screen can be fitted with a complete washing kit (if required) or used as a dry screen,
  • Screen carries a full 12 months manufacturer's warranty.
  • Screen features 5" (125 mm) extra clearance between top and middle decks. This is a major advantage for maintenance and something that other manufacturers do not offer.
  • Screening area is 6000 mm x 1800 mm, 11m2 ( 6’ x 20’, 120 square feet)
  • Adjustable stroke length....(Amplitude)
  • Maximum stroke is 3/4” (19 mm). Stroke can be reduced by removing weight plugs
  • Minimum stroke is 3/8" (10 mm). Stroke can be increased by adding weight plugs
  • Stroke measured at center of screen with standard wire cloth, 4” discharge lips, and 24” feedbox
  • Operating speed range 675-875 rpm
  • Screen has standard curved decks suitable for side-tensioned rubber, steel or mesh media,
  • New 30 kW electric drive package with v-belt drive and CE guarding,
  • Screen is supplied with sub-frame and motor mount,
  • Screen is supplied with Firestone Rubber springs, as standard
  • Superior load carrying double-roll bronze cage spherical roller bearings
  • Bearing size: 38 (190 mm)
  • PAINT – two part urethane primer, two part urethane topcoat – Factory standard color(s).
