Crushing and Screening

SAES E1860-3

Category: Screen

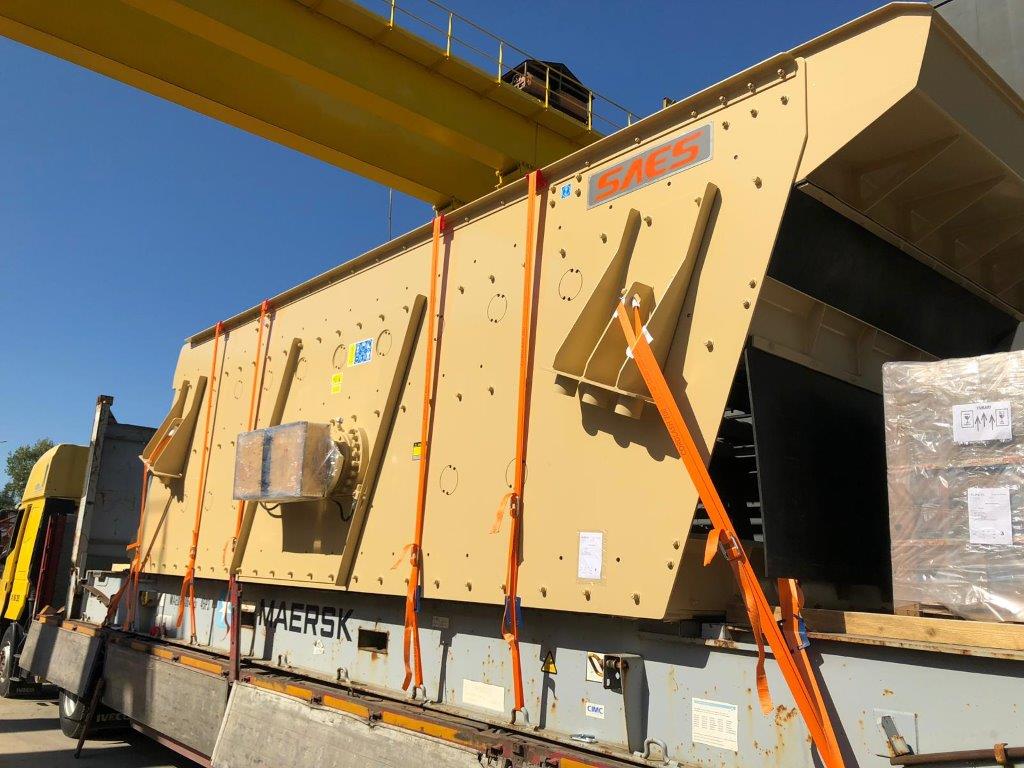

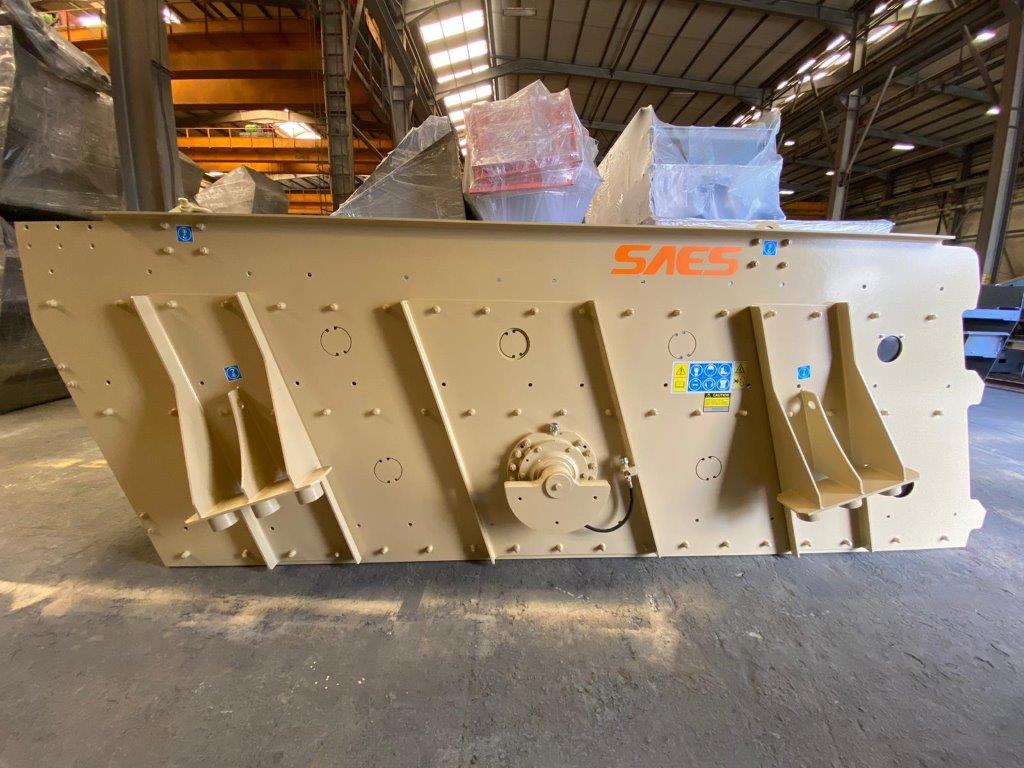

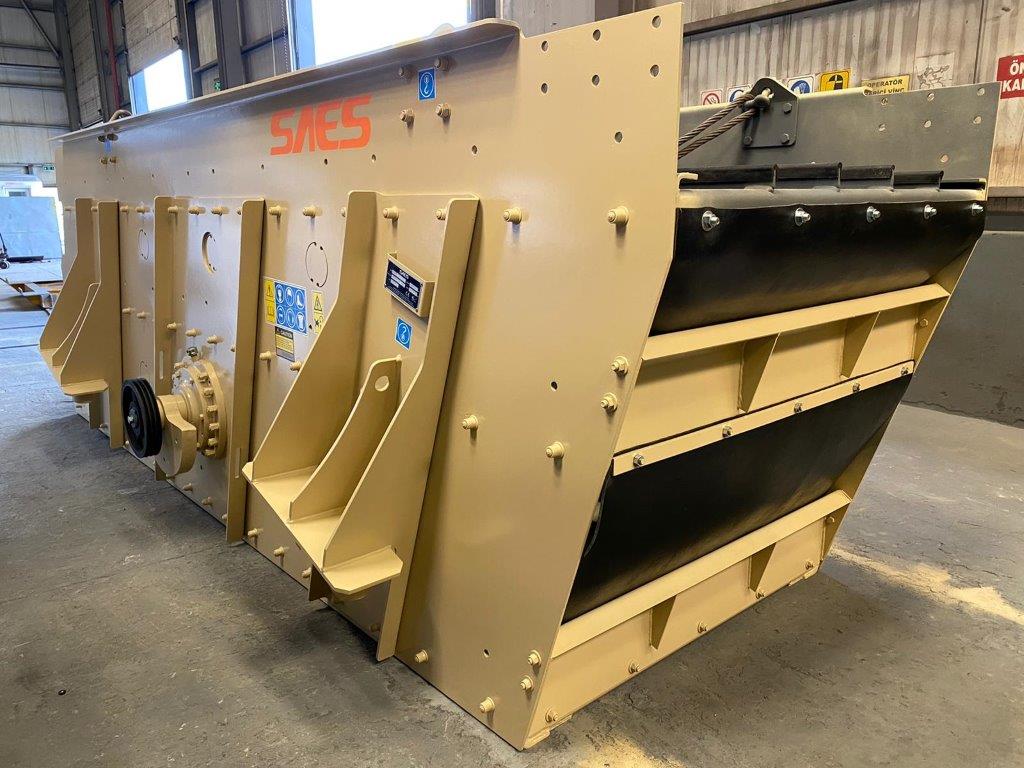

Vibrating Screen

Screen Dimensions : 1800 x 6000 mm
Number of screening decks : 3
Spherical roller bearings are SKF brand
Drive motor : 22 kW
Vibration amplitude is adjustable with flywheel counterweights
Screen body is made of 10 mm thick steel plate, with huck bolted assembly
Vibrating screen is mounted on the chassis with heavy duty helical springs
Working angle is normally 18º
Power transmission is by eccentric shaft, pulley and V belt drive
Weight : 7150 kg
Warranty on new screen : 12 months from start-up date
Machine is available from our stock in Ireland
