Twin Coarse Material Washer 36”x18’


Category: Washer


Twin Coarse Material Washer 36”x18’


  • Machine Size: 36” x 18’ (900 x 5,400mm)
  • Machine Weight: 23,800 lbs (10,800 kg)
  • Operating Angle: Generally 15° incline
  • Operating Speed: 32 RPM
  • Feed Size: 2-1/2” (65mm) Material

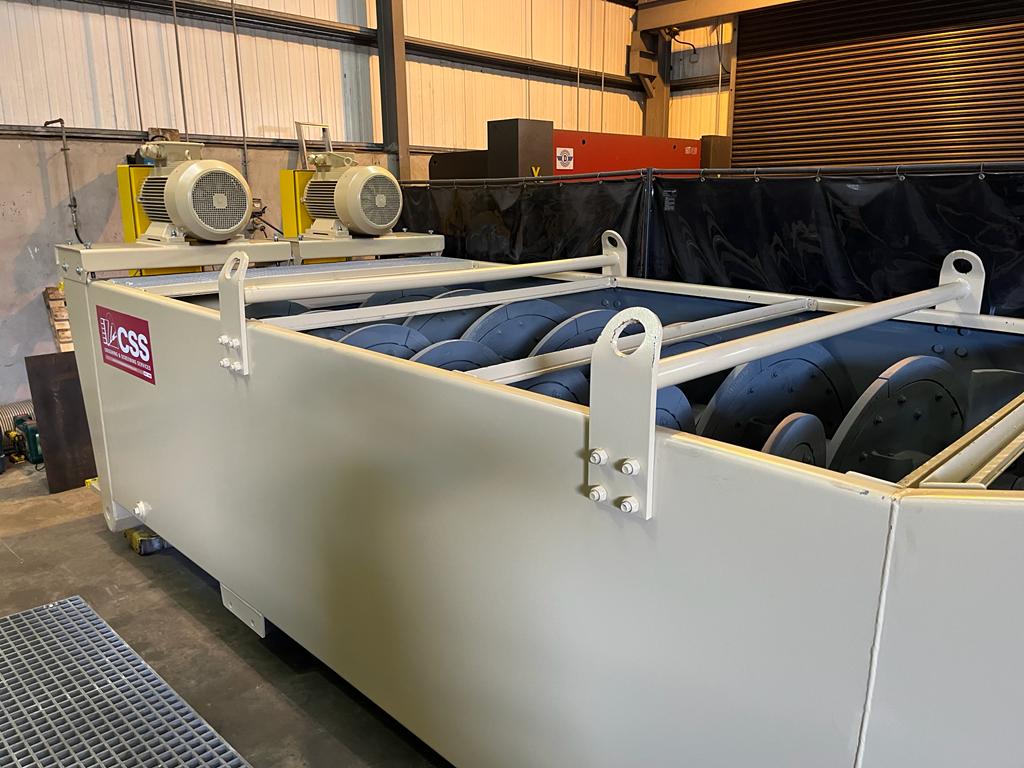

  • Power fitted : 2 x 40 Hp (2 x 30 kW) Electric Motors
  • Capacity: Up to 300 TPH. Actual production varies depending on material, feed gradation, silt & clay content, density, amount of water used, equipment configuration and application.
  • Water Required: 2000 – 4000 LPM depending on the application and material being processed.

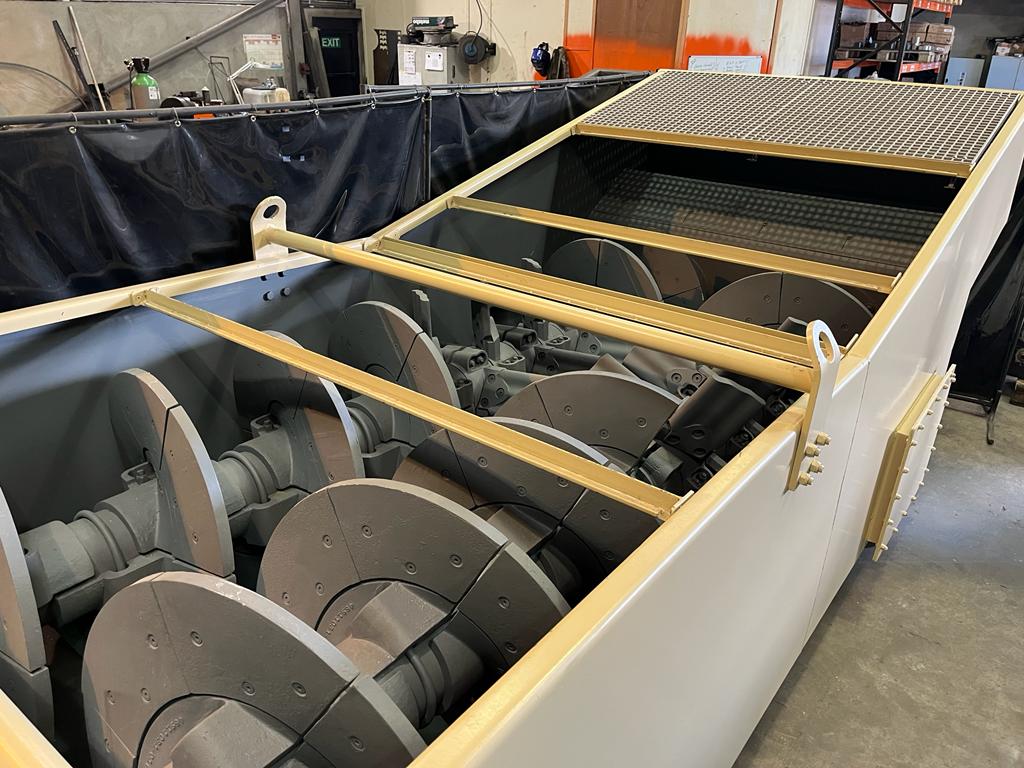

  • Twin Shaft Assembly: Heavy duty seamless steel shafts 8-5/8” (220mm) diameter. Cast spiral sections with replaceable hi-chrome shoes and 12 cast paddle configuration

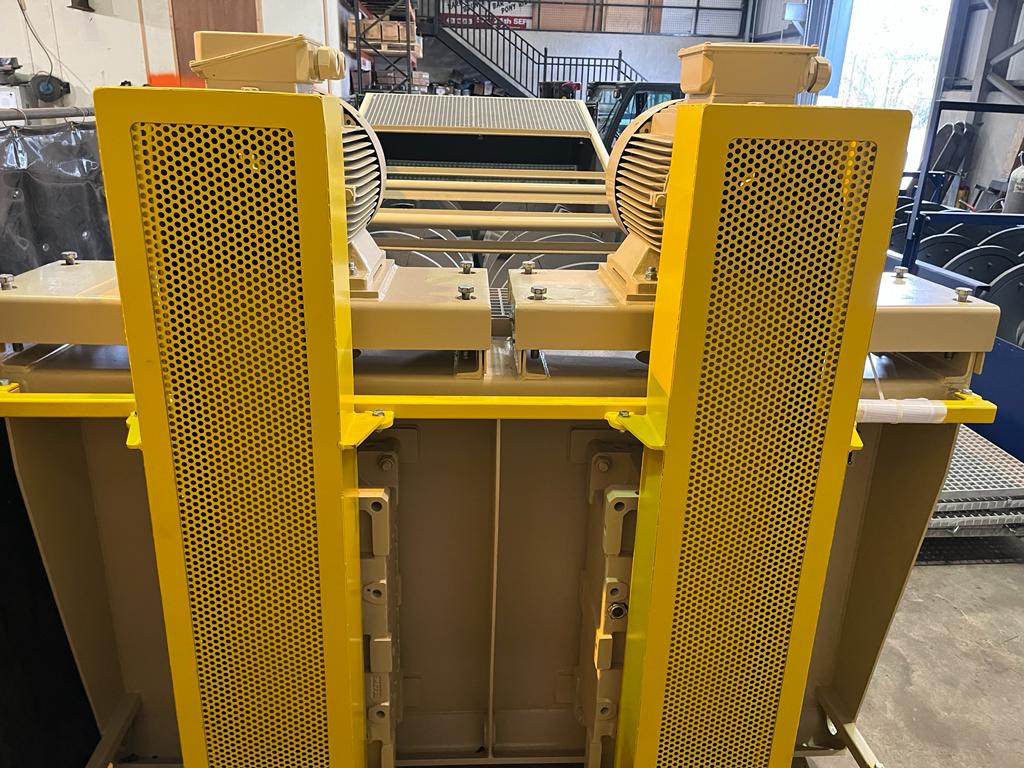

  • Drive: Oversized, extreme-duty, speed reducers with oil bath lubrication for simple maintenance.
  • Lower Bearing: Outboard grease lubricated lower bearing assembly with replaceable rubber ”donut” seals and stainless steel wear sleeves.
  • Tub: Fabricated from 1/4” (6mm) plate. Rising current manifold inside.
  • Accessories: Support legs, discharge chute.
